Tehničke pojedinosti

Osnovni podaci

Karakteristike

Opis proizvoda

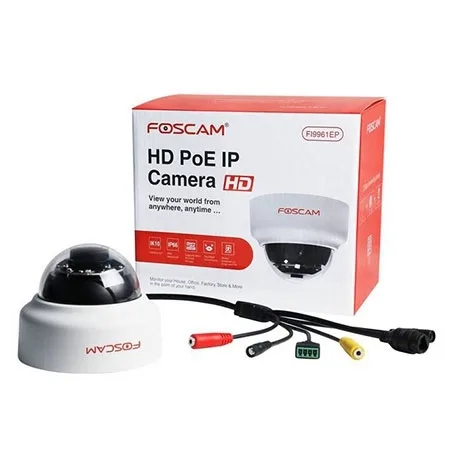

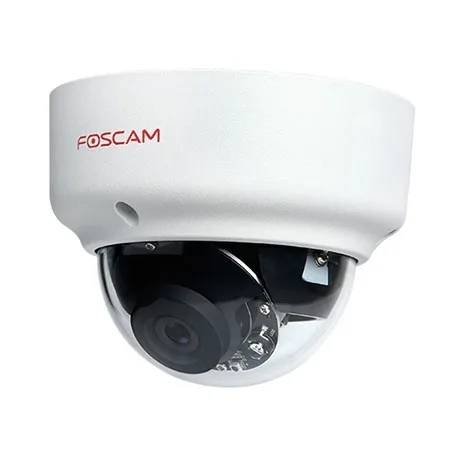

Name FI9961EP Version V2.0 and above V1.0 Sensor High Definition Color CMOS Sensor Display Resolution 2.0 megapixel (1920x1080) Min. Illumination 0 Lux (with IR Illuminator) Lens Type Glass lens Focal Length f:2.8mm f:4.0mm Aperture F:2.0 F:2.0 Angle of view Horizontal:100°, Diagonal :107° Horizontal:68°, Diagonal :76° Image Compression H.264 Image Frame Rate 25fps(50Hz), downward adjustable Resolution 1080P (1920x1080), 720P (1280x720), VGA(640x480), QVGA (320x240) Stream Dual stream Image Adjustment The hue, brightness, contrast, saturation and sharpness are adjustable Flip Image Flip and mirror Infrared Mode Automatic or manual Night Visibility With infrared array LEDs, IR Range up to 66 feet (20 meters) Input/Output External TRS interface for two-way audio Audio Compression PCM/G.726 Ethernet One 10/100Mbps RJ45 port Remote Access P2P DDNS Network Protocol IP, TCP, UDP, HTTP, HTTPS, SMTP, FTP, DHCP, DDNS, UPnP, RTSP, ONVIF Operating System Microsoft Windows 2000/XP, Vista, 7,8; Mac OS Browser Microsoft IE8 and above versions or compatible browser; Apple Safari Motion Detection Alarm via email, upload alarm snapshot to FTP Privacy Block Set privacy area manually User Account Three-level user role Firewall Supports IP filtering Reset Reset button is available Power Supply DC 12V/1.0A Power Consumption <4.5W Dimensions (LxWxH) 112.5x112.5x88mm (4.4"x4.4"x3.5") Net Weight 700g Waterproof IP66 Vandal-Proof IK10 Operating Temperature -10°C~60°C (14°F ~ 140°F) Operating Humidity 10%~80% (non-condensing) Storage Temperature -20°C~60°C (-4°F~140°F) Storage Humidity 0%~90% (non-condensing) Certification CE, RoHS, FCC, IC,IP66
